Burns Orbit Amplifiers

Burns Orbit Front Panel.png

THE WRITING ON THE WALL

VALVES ARE VINTAGE !

Do you wish to invest in obsolete valve equipment or will you back the judgement of top electronic technicians who build transistors into everything from space satellites to luxury personal radios. In the amplifier field we were the world's first Company to build a complete range of all transistor amplifiers and P.A. equipment. Sales to all parts of the world over the past two years have proved that we made the right decision.

Dead Valve.png
Dead Valve.png

A few of these turning up these days. They're some of the earliest mainstream transistor guitar amps, and Orbit Twos and Threes can still be had for a few hundred pounds. If you want to be pedantic, the Vibrato effect is actually Tremolo on all Burns equipment. All models except the Orbit Two have a Studio/Boost switch which cuts the drive level to the output transistors.

On the down side for a moment; from a purely repairs point of view these have to be some of the worst examples of mechanical design you're ever going to see. Think twice if someone says "I found this on eBay. Can you just have a quick look at it for me." Expect multiple age and corrosion related faults, especially high resistance solder joints. The germanium transistors are obsolete, expensive and hard to find in good condition, especially if you need matched pairs. As far as sound goes, I think models with simple bass and treble controls are much more usable than the ones with pre-set tone selector switches. Just a personal opinion. Having the original speakers is going to be a bonus if you're buying one.

60watts Peak 2.jpg

The power output of the Orbit Three was quoted as sixty watts. If you look closely at the advert on the left, they mention that this is peak power (2 x rms). That gives a target of 30watts rms if you're trying to repair one.

Adverts for other Burns models quoted power output simply as 'British'. That description was generally applied to rms values at the time.

Things became clearer when Baldwin took over and started to quote 'British rating at less than 10% distortion'.



10% distortion through an early transistor amp probably isn't something most people would want to listen to.

STILL WORKING ON THIS PAGE. For Orbit Three schematics and layouts click HERE

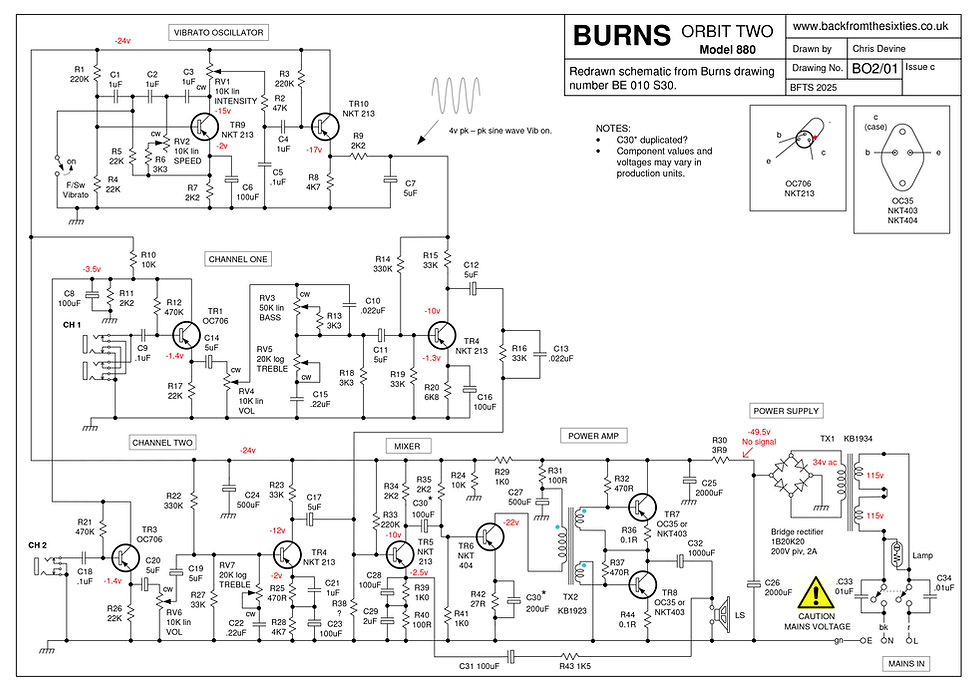

Burns Orbit Two

880. Orbit Two

Visio-Orbit Two Logo.jpg
Burns Orbit Two Control Panel.jpg

Available initially as a 2 x 10" and later as a 1 x 12"

16"h x 121/2"w x 91/2"d

Catalogue details

880 (75gns)

Power output: 40 watts, British rating.

Mains supply:    200 to 250v. A.C., 40/60 c.p.s., operation without adjustment. Supplied complete with 15 ft. of three conductor mains lead.

Speaker:  One 12 in. Orbital heavy duty speaker.

(Also available as a 2x10")

Channel One

  • Inputs:  Two high impedance

  • Controls:  Volume, Bass, Treble, Vibrato Intensity and Speed

Channel 2

  • Inputs:  Two high impedance

  • Controls:  Volume, Treble

OPERATION. In general, Channel One should be used for lead instruments like the solo guitar, or accordion, whilst Channel Two should be used for rhythm guitar, second accordion or microphone. The Orbit Two is not suitable for bass guitar.

Burns Orbit Two.png

Orbit Two 2 x 10"

Burns Orbit Three

Orbit Three Logo.jpg

plus

Orbit Three Logo.jpg
Visio-Double 12 Logo.jpg

Orbit Three schematics (and new layouts) have moved to HERE

881 / 885. Orbit Three Standard

Burns Orbit Three Control Panel Standard

882 / 886. Orbit Three Reverb "with extra dimensional control" if you're into that sort of thing.

Burns Orbit Three Control Panel Reverb.j
Burns Orbit Three Rear.png

882 Orbit Three 3 x 10" with reverb

THE AMPLIFIER

WITH THE BIG SOUND

From the heart of this circuit springs a new vitality. Improved "tone shaping" is the secret and the performance has been acclaimed both by top studio sound engineers and guitarists.

Test tapes for submission to A&R men or bookers necessitate quiet level recording free from hiss or hum. The new Studio Switch in top position cuts background noise. Flick the switch down to "Boost" and hear the amp with stringy (??) treble on lead, clear detached voices on chords, or clean bouncy bass tones.

?? Typo?

There are four versions of this unit:

'Orbit Three'  3 x 10"

  • 881 (no reverb)

  • 882 (reverb)

'Orbit Three Double 12'  2 x 12"

  • 885 (no reverb)

  • 886 (reverb)

881 (100gns) and 882 (118gns)

Output 60 watts.

Three 10" Orbital speakers.

Four inputs: two per channel.

Channel One for solo, has Volume, Six-position Tone Selector, Treble, Vibrato Intensity and Vibrato Speed controls. (Plus Reverb Intensity on 882)

Channel two has Volume and Treble controls. see below

On/off switch and indicator lamp.

Vibrato operated by heavy duty foot switch.

Operation on 200/250v.a.c. 40/60 c.p.s. both with automatic adjustment.

(Usually have the 100/150v option as well)

Dimensions 21"h x 25"w x 10"d

Weight 37Ib

The Channel Two Bass control isn't mentioned in this flyer

885 (131gns) and 886 (149gns)

Output 60 watts.

Two Special 12" Super Orbital speakers.

Four inputs: two per channel.

Channel One for solo, has Volume, Six-position Tone Selector, Treble, Vibrato Intensity and Vibrato Speed controls. (Plus Reverb Intensity on 886)

Channel two has Volume and Treble controls. see below

On/off switch and indicator lamp.

Vibrato operated by heavy duty foot switch.

Operation on 200/250 v.a.c. 40/60 c.p.s. or 100/150 v.a.c. 40/60 c.p.s. both with automatic adjustment.

Visio-Double 12 Logo.png

Dimensions 21"h x 25"w x 10"d

Weight - not specified

All - over weather proof covers included at no extra charge.

The Channel Two Bass control isn't mentioned in this flyer

Also available was the Orbit Stand, catalogue number 889.

889 Amplifier Stand (£7. 17s. 6d)

​A new amplifier stand to take the Orbit 3 or Double 12 amplifiers. Built from chrome plated steel tube. The top section incorporates dual friction clamps which enables the cradle to be lifted. The three basic units can be quickly detached and packed flat for transport.

NOTE:

Output power is 60watts  peak  =  30watts rms

Measured output power with a continuous 1kHz sine wave is just over 30watts rms at clipping into 2ohms.

Worth noting that, although Burns advertising didn't seem too bothered and they both used the same front panel badge, the 'Orbit Three Double 12' is not the same as an 'Orbit Double 12' (see next section).

Double 12 Logo.png
Orbit Three Double 12 Label.jpg

Orbit Three schematic

and layout

HERE

Burns Orbit Double 12

Orbit Double 12 Logo.jpg

Channel 1 gets a rotary Bass control instead of the tone selector switch.

Orbit Double 12 Reverb

Burns Orbit Double 12 Control Panel Reverb

An amp that Bert Weedon used and spoke very highly of. His own Double 12 (right) was part of a collection sold at auction by Bonhams, London in 2012.

There doesn't seem to be any advertising available for this one, but there's a demo on YouTube at:

https://youtu.be/Le1JAENeXrk?si=hjxgdssvsLxVzwAu

Burns Orbit Double 12.png

Photograph courtesy of Bonhams auction house

www.bonhams.com

5-6-7-8s with Burns Double 12 .jpg

You don't often get the chance to hear an Orbit on stage, so check out the 5.6.7.8s on YouTube in 2022.

https://youtu.be/4ncsA8I94EQ?si=eKb49JwqfUMtNdTs

(Google says the guitar's a Teisco EP-1L)

Difficult to tell from the front whether it's a Double 12 or an Orbit Three Double 12. They seem to have stuck the same logo on both amps.

Burns Orbit Six

Orbit Six Logo.jpg

883. Orbit Six Standard

Burns Orbit Six Control Panel Standard.jpg

884. Orbit Six Reverb

Burns Orbit Six Control Panel Reverb.jpg

883 (162gns) and 884 (180gns)

Output capability 100 watts.

Three 12" Orbital speakers. (Or 6 x 10")

Seven inputs; two per channel plus three bass guitar inputs.

Channel One (solo) has Volume, six position selector, Treble, Vibrato Intensity and Vibrato Speed controls. (Plus Reverb Intensity on 884)

Channel Two has Treble, Bass and Volume controls.

On/off switch and indicator lamp.

Vibrato footswitch.

Operation at 200/250 v.a.c. 40/60 c.p.s.

Covered with hard wearing leatherette.

Anodized expanded metal grill.

Hand stitched soft English leather handle.



Size 23" high x 331/4" wide x 12" deep

Orbit Six Rear View.png

Orbit Six 3 x 12" with reverb

Speakers:  6 x 10" 3ohm Celestions or 3 x 12" 6ohm Fanes

Weight:  (insert large number)


Baldwin Orbit 75

Catalogue number 610

Visio-Orbit 75 Logo.jpg
Baldwin Orbit 75 Front Panel.jpg
Baldwin Burns Orbit 75.jpg
Baldwin Orbit 75.png

Although there were still a lot of Burns versions around, this was the only Orbit in the Baldwin 1966 catalogue. It's a mix and match, transition model using the new Baldwin control panel styling and old Burns cabinet shape.

The speakers have moved around to what used to be the back and you can actually see the controls on stage (at last).

They can be found, now and again, with knobs from the Sonic range.

The 75 was available in the same range of colours as the Baldwin Sonics.

Saddle Tan

Jay Blue

Gold

Charcoal Grey

Silver Jet Black

Cardinal Red

Sage Green

Tangerine

Honey

White.

Power Output:  75watts (British Rating) at less than 10% distortion

Loudspeakers:  Two extra-high flux, heavy duty 12 inch, 6 ohms each

Mains Supply:  200-250 volts, 40-60 cps, no adjustment required and 100-125 volts, 40-60 cps, no adjustment required

Size : -

Weight:  -

Channel 1:

  • Inputs:  Two high impedance, 200k ohms

  • Controls:  Volume, Bass, Treble, Vibrato Intensity and Speed, Reverb Dimension, Three-degree Treble Boost buttons, Studio-Power Boost button​



Channel 2:

  • Input:  Two high impedance 200k ohms

  • Controls:  Volume, Bass, Treble

​​General:

  • Built-in reverberation, Vibrato and Reverb footswitches

  • Mains on-off switch and neon mains indicator

Semiconductor Details

1B40K20

Silicon Bridge rectifier

If:   4A

Vbr:   200V


NKT213

PNP Germanium

Vcb max:   32V

Vce max:   18V

Veb max:   10V

Ic:   250mA

Ptot:   200mW

Hfe:   50

TO1 Case.jpg

NKT217

PNP Germanium

Vcb max:   60V

Vce max:   40V

Veb max:   10V

Ic:   500mA

Ptot:   200mW

Hfe:   50

TO1 Case.jpg

NKT304

Vcb max:   30V

Vce max:   20V

Veb max:   15V

Ic:   2500mA

Ptot:   750mW

Hfe:   50

PNP Germanium

TO8 Case.jpg

NKT403

PNP Germanium

Vcb max:   80V

Vce max:   32V

Veb max:   40V

Ic:   10A

Ptot:   50W

Hfe:   50/150

TO3 Case.jpg

NKT404

PNP Germanium

Vcb max:   60V

Vce max:   32V

Veb max:   20V

Ic:   10A

Ptot:   50W

Hfe:   50/150

TO3 Case.jpg

NKT452

PNP Germanium

Vcb max:   36V

Vce max:   32V

Veb max:   10V

Ic:   3A

Ptot:   43W

Hfe:   30/90

TO3 Case.jpg

OC25

PNP Germanium

Vcb max:   40V

Vce max:   40V

Veb max:   10V

Ic:   4A

Ptot:   23W

Hfe:   15

TO3 Case.jpg

OC35

PNP Germanium

Vcb max:   60V

Vce max:   32V

Veb max:   20V

Ic:   8A

Ptot:   30W

Hfe:   25

TO3 Case.jpg

OC706

PNP Silicon (The only silicon transistors in the circuits, used as channel input devices)

No other data available

OC706 Case.jpg
