Watkins Copicat IC400 Belt Drive
                                                                       aka WEM Vari Speed

More eighties than sixties, but very interesting anyway

Watkins Copicat IC400 Varispeed top view

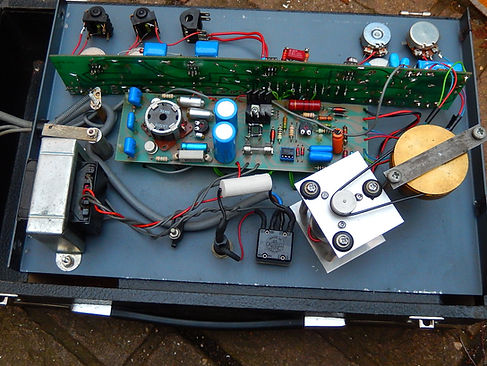

Watkins Copicat IC400 Varispeed interior view 1
Watkins Copicat IC400 Varispeed interior view 2
Watkins Copicat IC400 Varispeed mains switch
Visio-Exclamation Caution.jpg

IMPORTANT: These drawing and notes are provided for interest only and are not guaranteed to be accurate. Use at your own risk and discretion. The equipment shown contains lethal voltages and should only be worked on by people with suitable training and experience. Schematics and layouts are typical but will vary.

PRINTING

Magnifying glass.jpg

Wix (bless 'em 😖) have changed their image format - again - to avif just to make them awkward to print. Unless you want to buy a converter, the easiest way to make a hard copy is:

  • Left click when the magnifying glass icon appears and wait for the picture to clear.
    (On a touch screen, tap on the image). This will display a higher res file.

  • Right click and 'save image as' to somewhere as an avif file.
    (On a touch screen, touch and hold down to view the menu)

  • Upload the saved file to your Google Drive.

  • Open the file and use the print menu to make a hard copy or save as a pdf.

1) General Stuff

This information comes from a strip down of serial number 85542. It's too complicated to show in one readable schematic and so it's presented in three main parts;

  • the audio control path

  • the bias oscillator and PSU

  • the motor control section



The bias oscillator and motor control share the same circuit board, the audio circuit is on another and parts of the PSU appear on the chassis and both boards.



Judging by the marks on the back of the pcb, what was probably a bridge rectifier has been replaced by four 1N4002 discretes. The only other changes seem to be a replacement send / return jack socket and a T2A fuse in the mains circuit. The serial number label specifies a T160mA for a mains input power of 30VA.

The main problem with this one was a loud mechanical hum while the tape was running. It was cured by stripping out the motor and lubricating both end bearings with sewing machine oil. Oddly enough, it turned out to be the top one causing the trouble.

RV103 is best left alone, but it can be set to give a sensible range of adjustment on the front panel vari-speed control pot. If it's set too fast the speed will max out before the pot is fully clockwise.

Although it's not a problem with an amplifier, the 'Send-Return' facility is a bit annoying if you want to use it in a mixer effects loop. Like the IC300, it doesn't disconnect the straight through signal. Input sensitivity in this mode is set by the Channel 2 level pot (not marked but, logically, next to the socket).



Component reference numbers are shown for convenience only. They're not WEM factory numbers since I couldn't find any at the time.

2) Copicat IC400 Audio Path

Copicat IC400 Varispeed Audio Control Board Schematic

3) Copicat IC400 Audio Board Layout

Copicat IC400 Varispeed Audio Control Bo

4) Copicat IC400 Motor Control

Copicat IC400 Varispeed Motor Control Board Schematic

5) Copicat IC400 Bias Oscillator and Power Supply

Copicat IC400 Varispeed Bias Oscillator and PSU Schematic

6) Copicat IC400 Bias Oscillator and Motor Control Board Layout

Copicat IC400 Varispeed Motor Control Board Layout
